The submersible mixer is mainly used in the anaerobic tank, anoxic tank, regulating tank, selection tank and sludge tank of the sewage treatment plant. After the submersible mixer is put into operation, it is regularly maintained and maintained to better play its role.
Oil change: The submersible mixer usually needs to be replaced once every six months. The model of the lubricating oil is 32# mechanical oil. When changing the oil, carefully unscrew the oil plug and put it into the memory oil. Note that there may be remaining inside the oil gun. Press to prevent oil spray.
Assembly and disassembly of the mechanical seal of the submersible mixer: The assembly must be carried out in very clean environmental conditions and the assembly medium is pure lubricating oil. Firstly, all parts of the mechanical seal must be cleaned, and then the static ring device mechanically sealed at both ends is evenly and smoothly pressed into the positioning hole, so as to protect the static ring sealing surface, the sealing surface must not be damaged, and then the moving ring is used by the guiding sleeve. Install the shaft and close the oil chamber end cover. Be careful not to hit the sealing surface of the mechanical seal. The mechanical seal can be removed in the reverse order of the above.
Bearing grease: It is usually replaced once during overhaul. The amount of grease is 1/3-1/2 of the bearing cavity clearance. It is recommended to use high temperature calcium nano grease for grease.
Leakage protection treatment of the submersible mixer: If the leakage switch is protected, it means that the mechanical seal on the motor side is damaged, it must be inspected and repaired, the blockage of the oil chamber cavity is opened, and the liquid in the liquid is drained.
The use of the submersible mixer should pay attention to the above problems, in order to better play its role, the sewage treatment will be better.
Concerned about surprises
Label: Daily maintenance of the diving mixer
Previous: The role and note of aluminum alloy door and window hardware in the door and window system Next: Analysis of the advantages of commercial concrete mixing plant

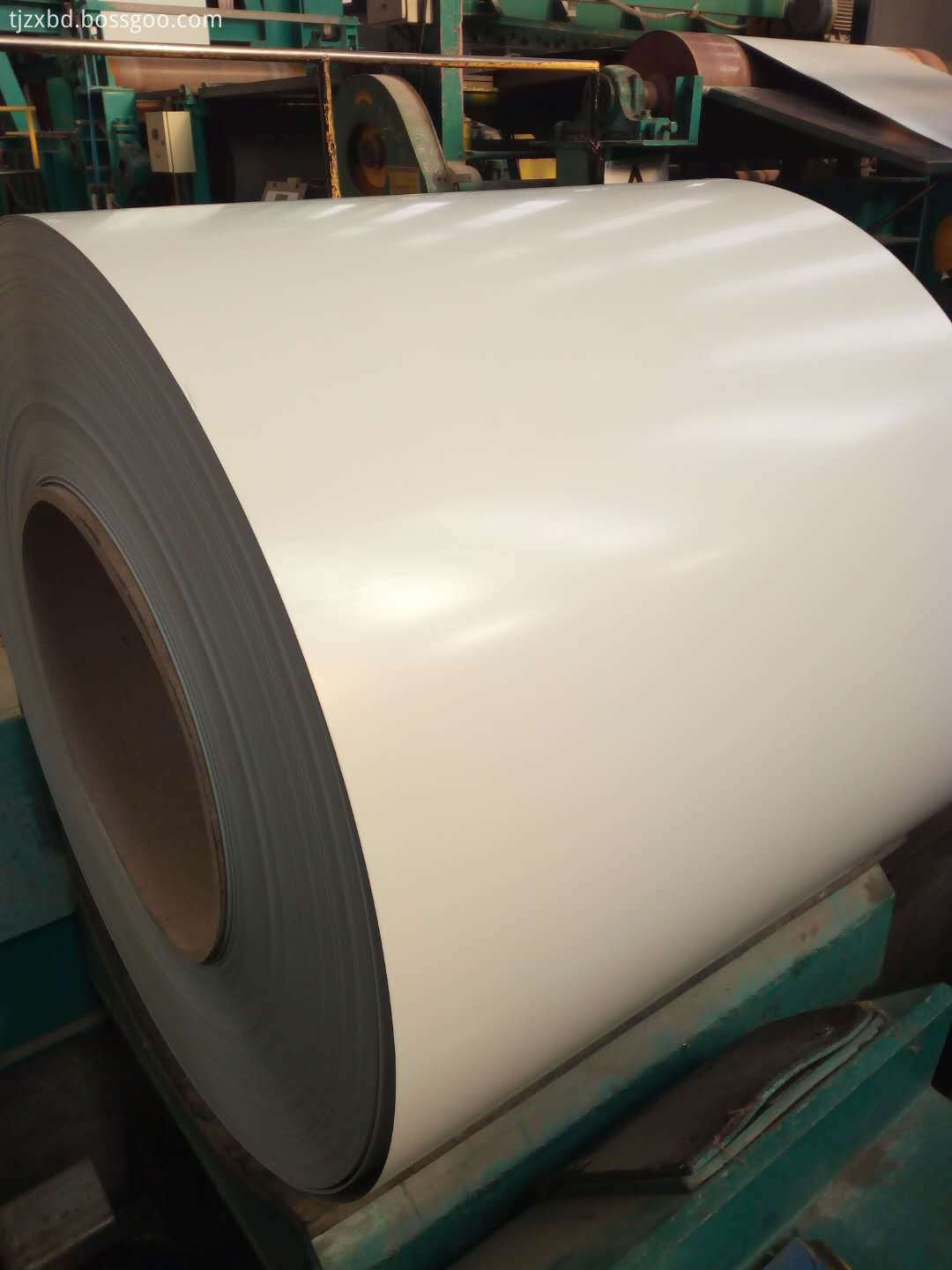

The advantanges of Color Steel Coil are light weight, beautiful appearance, anti-corrosion,etc. The application of PPGI are wide, like Industrial and civil buildings, Warehouse,special constructions, workshop roofing,etc. Prepainted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per customer's requirement. Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.
